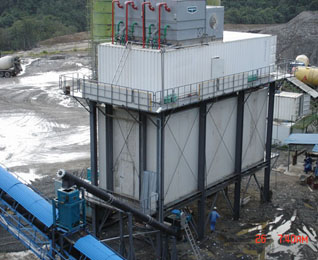

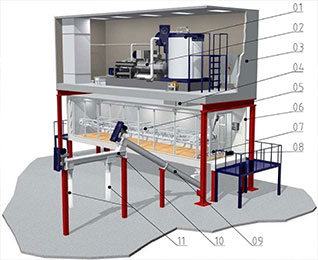

The cold water tank delivers water to the mixing agitator plant and the flake ice maker (the Focusun flake ice maker is installed inside a 40-ft. container). The capacity varies from 3 to 60 tons daily per unit.

Containerized flake ice maker is for temperate, subtropical and tropical conditions.

Accessories and Additional Equipment

  • Containerized automatic Ice Storages
  • Ice delivery (screw and belt conveyors and blowing systems)
  • Weighing systems
  • Intermediate holding hoppers (day tanks)
  • • Prefabricated steel frames for the support of the Containerized and Mobile Ice Storages with or without integrated and insulated cold water tank
  • Prefabricated steel frames for the support of the Containerized and Mobile Ice Storages with integrated ice weighing and ice blowing systems
  • Containerized Cold or Ice Water Plants

Standard execution

One new ISO-container, painted white with air-conditioning, light and aluminum floor
  • Piston or screw compressors
  • Electric motors – IP 55 – insulation class F
  • One evaporative condenser
  • One or two ice makers with level control
  • Automatic oil return system
  • PLC Flow control with indication to ice maker, easy and safe to operate.


Design conditions

  • Max. ambient temperature:60℃
  • Wet bulb temperature:30℃
  • Water inlet temperature:20℃
  • Ice outlet temperature:-7℃
  • Refrigerant:R22/R404A
  • Power supply:380V/50Hz/3P
  • Running hours flake ice plant:24hours

Requirements on Site

  • Water (2 bar pressure, 20℃)
  • electric power supply
  • adequate foundations

Equipment features

Internally-scrapping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
Stainless steel materials, advanced processing equipment and heat treatment ensure the best heat transfer efficiency.
The design of large water receiving plate can prevent water leaking at the bottom of evaporator.
Photoelectric switch is directly installed in the bottom of evaporator.
Direct liquid feeding and dry evaporation is simple, safe and reliable control.
Integrated modular equipment installation is convenient for maintenance.

Focusun develops and manufactures different models of flake ice machines for your options.

Model

Capacity
(Ton/24Hrs)

Power supply

Compressor

Refrigerant

Cooling way

FIM-30K

3

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-40K

4

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-50K

5

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-80K

8

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-100K

10

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-150K

15

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-200K

20

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-250K

25

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-300K

30

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-350K

35

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-400K

40

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-500K

50

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling

FIM-600K

60

380V/3P/50Hz

Bitzer

R22/R404A

Water cooling
