Model:FIP-100
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 10000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 1.1 |
| Warm water pump | Kw | 0.75 | |
| Ice cutter | Kw | 1.1 | |
| Cooling tower fan | Kw | 1.1 | |
| Cooling water pump | Kw | 2.2 | |
| Total running power | Kw | 39.07 | |
| Installment power | Kw | 48 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 71 | |
| Operating power | Kw | 32.82 | |
| Compressor COP/EER | Kw/kw | 2.16 | |
| Horse power | Hp | 25×2sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 1600×1200×1800 |
| Number of evaporator | 1PC | ||
| Size of evaporator | (L×W×H)(mm) | 2200×1700×2200 | |
| Size of ice outlet | (L×W)(mm) | 1500×300 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф2000×2410 | |
| Size of water feeding pipe of cooling tower | 3/4" | ||
| Size of cooling water pipes | 2-1/2" | ||
| Size of water feeding pipe | 3/4" | ||
| Operating weight | Unit | Kg | 1150 |
| Evaporator | Kg | 1460 | |
| Cooling tower | Kg | 670 | |
| Water supply pressure requirement | Bar | 1 | |

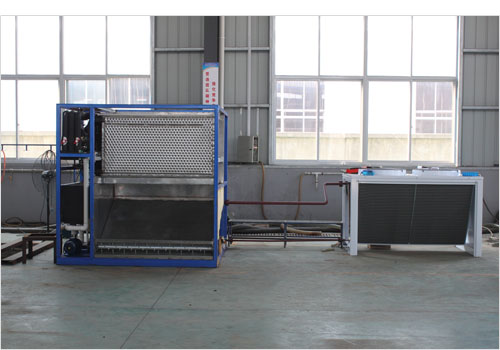

Plate ice machine FIP-100Other Model:
