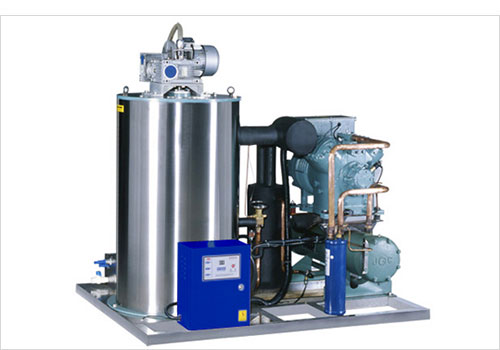

Home > Flake ice machine > Marine seawater flake ice machine FIF-05WB
Model:FIF-05WB
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 800 | |
| Cooling way | Seawater cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 4.95 | |
| Operating power | Kw | 3.06 | |
| Compressor COP/EER | Kw/kw | 1.61 | |
| Horse power | Hp | 4 | |
| Operating power | Total running power | Kw | 3.665 |
| Installment power | Kw | 4.5 | |
| Operating power of reducer | Kw | 0.18 | |
| Operating power of cold water pump | Kw | 0.025 | |
| Cooling water pump | Kw | 0.4 | |
| Dimension | Size of ice maker | (L×W×H)(mm) | 1200×740×650 |
| Size of water feeding pipe | 1/2" | ||
| Size of ice outlet | mm | Φ380 | |
| Weight of unit | Operating weight of flake ice machine | Kg | 560 |
| Water supply pressure requirement | Bar | 1 | |
Marine seawater flake ice machine FIF-05WBOther Model:
