Home > Flake ice machine > Marine seawater flake ice machine FIF-40WB

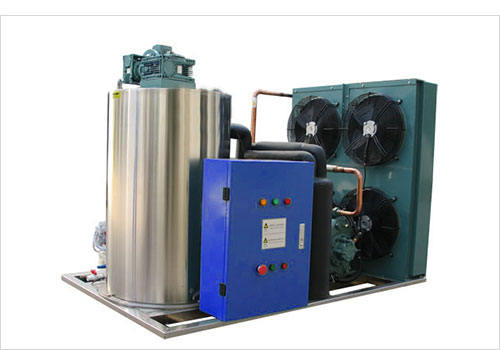

Model:FIF-40WB
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 4000 | |
| Cooling way | Seawater cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 22.8 | |
| Operating power | Kw | 13.04 | |
| Compressor COP/EER | Kw/kw | 1.75 | |
| Horse power | Hp | 25 | |
| Operating power | Total running power | Kw | 14.94 |
| Installment power | Kw | 18 | |
| Operating power of reducer | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.03 | |
| Cooling water pump | Kw | 1.5 | |
| Dimension | Size of ice maker | (L×W×H)(mm) | 1700×900×1200 |
| Size of water feeding pipe | 1/2" | ||
| Size of ice outlet | mm | Φ520 | |
| Weight of unit | Operating weight of flake ice machine | Kg | 780 |
| Water supply pressure requirement | Bar | 1 | |
Marine seawater flake ice machine FIF-40WBOther Model:
