Model:FIP-400
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 40000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 6 |
| Warm water pump | Kw | 2.2 | |
| Ice cutter | Kw | 3 | |
| Cooling tower fan | Kw | 3.7 | |
| Cooling water pump | Kw | 7.5 | |
| Total running power | Kw | 154.7 | |
| Installment power | Kw | 200 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 296.1 | |
| Operating power | Kw | 132.3 | |
| Compressor COP/EER | Kw/kw | 2.24 | |
| Horse power | Hp | 60×3sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 3200×2200×2200 |
| Number of evaporator | 2PC | ||
| Size of evaporator | (L×W×H)(mm) | 3800×2200×2450 | |
| Size of ice outlet | (L×W)(mm) | 1500×300×2PC | |
| Size of cooling tower | (O.D.×H)(mm) | Ф3300×2785 | |
| Size of water feeding pipe of cooling tower | 1-1/4" | ||
| Size of cooling water pipes | 5" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 2850 |
| Evaporator | Kg | 2565 | |
| Cooling tower | Kg | 2730 | |
| Water supply pressure requirement | Bar | 1 | |

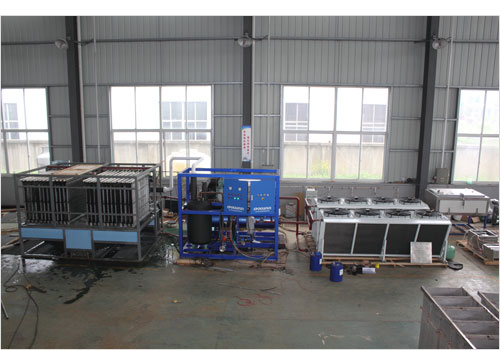

Plate ice machine FIP-400Other Model:
