Model:FIP-480
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 48000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 8.8 |
| Warm water pump | Kw | 2.5 | |
| Ice cutter | Kw | 4.5 | |
| Cooling tower fan | Kw | 3.7 | |
| Cooling water pump | Kw | 11.5 | |
| Total running power | Kw | 189.1 | |
| Installment power | Kw | 230 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 357.6 | |
| Operating power | Kw | 158.1 | |
| Compressor COP/EER | Kw/kw | 2.26 | |
| Horse power | Hp | 75×3sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 3200×2200×2200 |
| Number of evaporator | 3PC | ||
| Size of evaporator | (L×W×H)(mm) | 3200×2200×2450 | |
| Size of ice outlet | (L×W)(mm) | 1500×300×3PC | |
| Size of cooling tower | (O.D.×H)(mm) | Ф3770×3490 | |
| Size of water feeding pipe of cooling tower | 1-1/4" | ||
| Size of cooling water pipes | 5" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 3210 |
| Evaporator | Kg | 1680 | |
| Cooling tower | Kg | 3640 | |
| Water supply pressure requirement | Bar | 1 | |

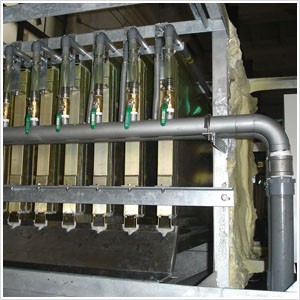

Plate ice machine FIP-480Other Model:
