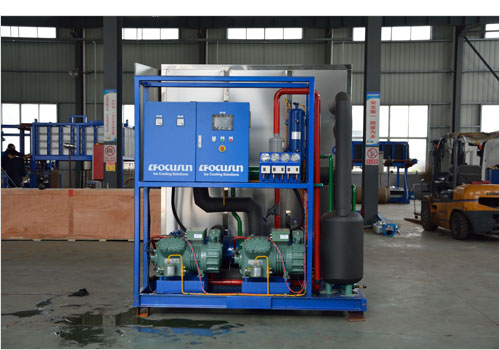

Model:FIP-10

Subject Unit Technical parameter
Powersupply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant 　 R22 or R404A
Capacity Kg/day 1000
Temperature Ambient temperature ℃ 35
Waterinlet temperature ℃ 20
Operating power Operating power of cutter Kw 0.55
Operating power of cold water pump Kw 0.55
Warm water pump Kw 0.37
Total running power Kw 6.69
Installment power Kw 8
Compressor Manufacturer 　 Bitzer
Refrigeration capacity Kw 7.66
Operating power Kw 4.52
Compressor COP/EER Kw/kw 1.69
Horse power Hp 5
Condenser Fan power Kw 0.7
Cooling way 　 Air cooling
Installment  　 Internaly installed
Dimension Size of ice maker (L×W×H)(mm) 1700×1200×1700
Size of condenser (L×W×H)(mm)  --
Size of water feeding pipe 　 1/2"
Operating weight Operating weight of plate ice maker Kg 960
Operating weight of condenser Kg  --
Water supply pressure requirement Bar 1
