Model:FIP-30
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Powersupply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 3000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Operating power of cutter | Kw | 0.55 |
| Operating power of cold water pump | Kw | 0.55 | |
| Warm water pump | Kw | 0.37 | |
| Total running power | Kw | 14.41 | |
| Installment power | Kw | 18 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 21.4 | |
| Operating power | Kw | 11.84 | |
| Compressor COP/EER | Kw/kw | 1.8 | |
| Horse power | Hp | 15 | |
| Condenser | Fan power | Kw | 1.1 |
| Cooling way | Air cooling | ||
| Installment | Externaly installed | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 2200×1500×2000 |
| Size of condenser | (L×W×H)(mm) | 1300×1200×1450 | |
| Size of water feeding pipe | 1/2" | ||
| Operating weight | Operating weight of plate ice maker | Kg | 1250 |
| Operating weight of condenser | Kg | 89 | |
| Water supply pressure requirement | Bar | 1 | |

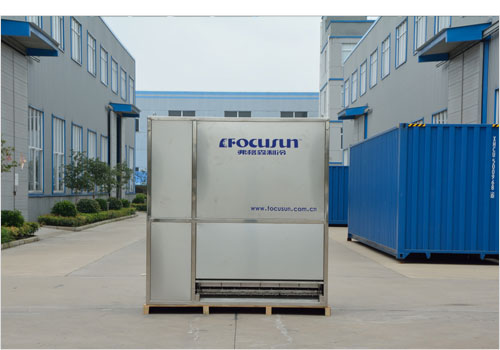

Plate ice machine FIP-30Other Model:
|
|
|
|
