Model:FIT-25
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 2500 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 9.74 |
| Installment power | Kw | 12 | |
| Operating power of cutter | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 20.6 | |
| Operating power | Kw | 7.72 | |
| Compressor COP/EER | Kw/kw | 2.67 | |
| Horse power | Hp | 12 | |
| Condenser | Fan power | Kw | 1.1 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 1600×800×2000 |
| Size of condenser | (L×W×H)(mm) | 1300×1200×1350 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of tube ice maker | Kg | 1150 |
| Operating weight of condenser | Kg | 101 | |
| Water supply pressure requirement | Bar | 1 | |

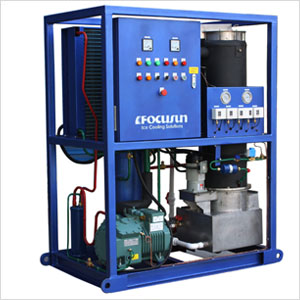

Tube ice machine FIT-25Other Model:
|
|
|
|
||||||||
|
|
|
|
