Model:FIT-30
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 3000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 11.01 |
| Installment power | Kw | 13.5 | |
| Operating power of cutter | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 24.5 | |
| Operating power | Kw | 8.89 | |
| Compressor COP/EER | Kw/kw | 2.76 | |
| Horse power | Hp | 15 | |
| Condenser | Fan power | Kw | 1.2 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 1700×920×2000 |
| Size of condenser | (L×W×H)(mm) | 1400×1200×1350 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of tube ice maker | Kg | 1250 |
| Operating weight of condenser | Kg | 125 | |
| Water supply pressure requirement | Bar | 1 | |

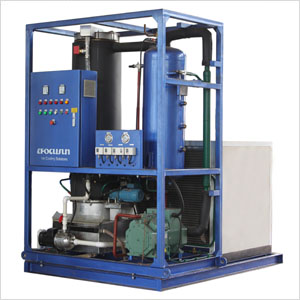

Tube ice machine FIT-30Other Model:
|
|
|
|
||||||||
|
|
|
|
