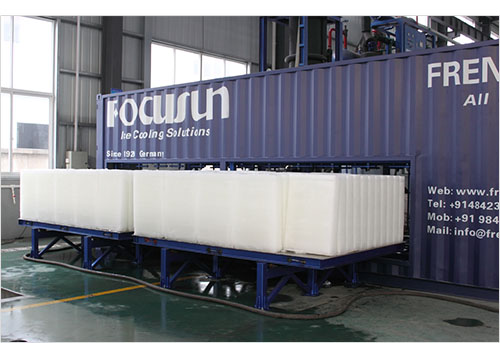

Home > Block ice machine > Containerized direct block ice machine FIB-180DC
Model:FIB-180DC

ITEM

UNIT

TECHNICAL PARAMETER

Input power

voltage/phase/HZ

380V/3P/50Hz

Refrigerant



R22 or R404A

Ice field

Kg/day

18000

Cooling way



Water cooling

Temperature

Ambient temperature

35

Water Inlet temperature

20

Running power

Total running power

kw

55.1

Installed power

kw

80

Cooling tower fan

kw

1.5

Water cooling pump

kw

5.5

Water cooling pump power

kw

0.75

Compressor

Manufacture



Bitzer

Refrigerating capacity

kw

118.2

Running power

kw

51.4

Compressor COP/EER

Kw/kw

2.3

Horsepower

Hp

40×3sets

Working time

Ice making time

hour(h)

7.5

Ice doffing time

hour(h)

0.5

Outline size

Weight of block ice

Kg/block

50

Block ice machine outline size

(length×width×height)(mm)

480×160×700

Machine modular outline size

(length×width×height)(mm)

2000×1200×1600

Evaporator module quantity



3pieces

Evaporator module outline size

(length×width×height)(mm)

4800×1000×2200

Cooling tower outline size

(external diameter×height)(mm)

Ф2175×2565

Dimensions of water supply pipe cooling tower



3/4”

Cooling water pipe size



4”

Inlet pipe size of ice machine



1-1/4”

Running weight

Machine unit

kg

2560

Evaporator

kg

11440

Cooling tower

kg

1120

Water pressure requirements

Bar

1
