Model:FIM-08A
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 3.535 |
| Operating power of reducer | Kw | 0.21 | |
| Operating power of cold water pump | Kw | 0.025 | |
| Capacity/stock | Capacity | 800 | |
| Capacity of ice bin | Kg | 500 | |
| Compressor | Manufacturer | Tecumseh | |
| Refrigeration capacity | Kw | 4.5 | |
| Operating power | Kw | 1.58 | |
| Compressor COP/EER | Kw/kw | 1.5 | |
| Horse power | Hp | 3 | |
| Condenser | Fan power | Kw | 0.45 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 1200×740×650 |
| Size of ice bin | (L×W×H)(mm) | 1400×1000×1050 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of flake ice maker | Kg | 235 |
| Operating weight of ice bin | Kg | 560 | |
| Water supply pressure requirement | Bar | 1 | |

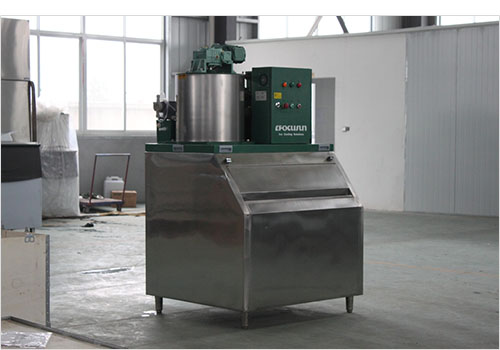

Flake ice machine FIM-08AOther Model:
|
|
|
|
||||||||
|
