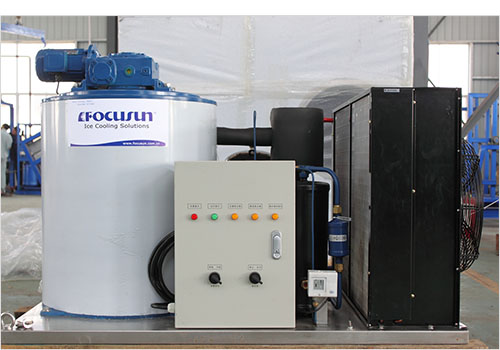

Home > Flake ice machine > Flake ice machine FIM-25A - Focusun Ice Machine
Model:FIM-25A

Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Total running power Kw 9.56
Operating power of reducer Kw 0.37
Operating power of cold water pump Kw 0.03
Capacity/stock Capacity 2500
Capacity of ice bin Kg 1100
Compressor Manufacturer   Maneurop
Refrigeration capacity Kw 14.45
Operating power Kw 8.26
Compressor COP/EER Kw/kw 1.75
Horse power Hp 12
Condenser Fan power Kw 0.45×2sets
Cooling way   Air cooling
Dimension Size of ice maker (L×W×H)(mm) 1560×1200×1150
Size of ice bin (L×W×H)(mm) 1600×1400×950
Size of water feeding pipe   1/2"
Weight of unit Operating weight of flake ice maker Kg 550
Operating weight of ice bin Kg 1200
Water supply pressure requirement Bar 1
