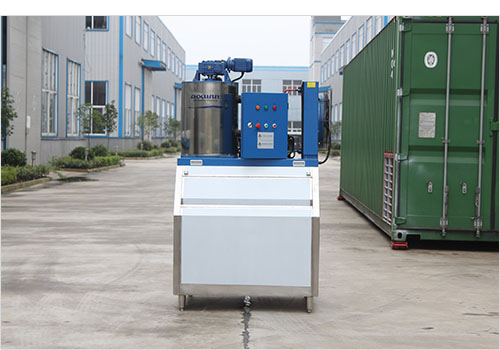

Home > Flake ice machine > Flake ice machine FIM-10A - Focusun Ice Machine
Model:FIM-10A

Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Total running power Kw 4.295
Operating power of reducer Kw 0.21
Operating power of cold water pump Kw 0.025
Capacity/stock Capacity 1000
Capacity of ice bin Kg 500
Compressor Manufacturer   Tecumseh
Refrigeration capacity Kw 5.57
Operating power Kw 3.61
Compressor COP/EER Kw/kw 1.54
Horse power Hp 3
Condenser Fan power Kw 0.45
Cooling way   Air cooling
Dimension Size of ice maker (L×W×H)(mm) 1200×740×780
Size of ice bin (L×W×H)(mm) 1400×1000×1050
Size of water feeding pipe   1/2"
Weight of unit Operating weight of flake ice maker Kg 380
Operating weight of ice bin Kg 560
Water supply pressure requirement Bar 1
