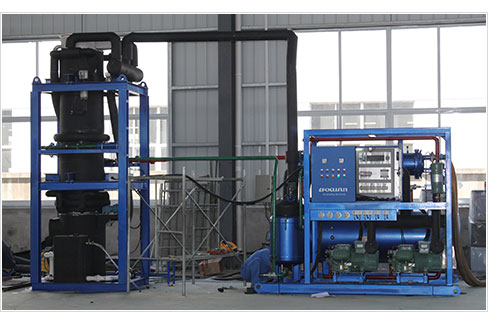

Model:FIT-100

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	380V/3P/50Hz
Refrigerant			R22 or R404A
Capacity		Kg/day	10000
Temperature	Ambient temperature	℃	35
Temperature	Water inlet temperature	℃	20
Operating power	Total running power	Kw	34.95
	Installment power	Kw	45
	Operating power of cutter	Kw	0.75
	Operating power of cold water pump	Kw	1.1
	Fan motor of cooling tower	Kw	1.1
	Operating power of cold water pump	Kw	2.2
Compressor	Manufacturer		Bitzer
	Refrigeration capacity	Kw	74.3
	Operating power	Kw	29.8
	Compressor COP/EER	Kw/kw	2.5
	Horse power	Hp	50
	Cooling way		Water cooling
Dimension	Size of ice maker	(L×W×H)(mm)	Unit:1800×1500×1600
	Size of ice maker	(L×W×H)(mm)	Evaporator:1180×1180×3500
	Size of cooling tower	(O.D.×H)(mm)	Φ2000×2410
	Size of liquid pipe of cooling tower		3/4"
	Size of cooling water pipe		2-1/2"
	Size of waterinlet pipe of ice maker		1"
	Size of ice outlet	mm	300×250
Weight of unit	Operating weight of tube ice maker	Kg	Unit:1560
	Operating weight of tube ice maker	Kg	Evaporator:2296
	Operating weight of cooling tower	Kg	670
Water supply pressure requirement		Bar	1.5
