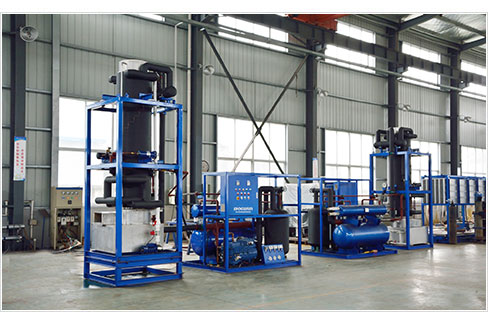

Home > Tube ice machine > Tube ice machine FIT-200 - Focusun Ice Machine

Model:FIT-200

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	380V/3P/50Hz
Refrigerant			R22 or R404A
Capacity		Kg/day	20000
Temperature	Ambient temperature	℃	35
Temperature	Water inlet temperature	℃	20
Operating power	Total running power	Kw	68.5
	Installment power	Kw	85
	Operating power of cutter	Kw	1.5
	Operating power of cold water pump	Kw	2.2
	Fan motor of cooling tower	Kw	1.5
	Operating power of cold water pump	Kw	3.7
Compressor	Manufacturer		Bitzer
	Refrigeration capacity	Kw	148.6
	Operating power	Kw	59.6
	Compressor COP/EER	Kw/kw	2.5
	Horse power	Hp	50×2
	Cooling way		Water cooling
Dimension	Size of ice maker	(L×W×H)(mm)	Unit:2200×2000×1800
	Size of ice maker	(L×W×H)(mm)	Evaporator:1350×1350×4600
	Size of cooling tower	(O.D.×H)(mm)	Φ2175×2565
	Size of liquid pipe of cooling tower		3/4"
	Size of cooling water pipe		2-1/2"
	Size of waterinlet pipe of ice maker		1"
	Size of ice outlet	mm	400×300
Weight of unit	Operating weight of tube ice maker	Kg	Unit:2260
	Operating weight of tube ice maker	Kg	Evaporator:3650
	Operating weight of cooling tower	Kg	1120
Water supply pressure requirement		Bar	1.5
