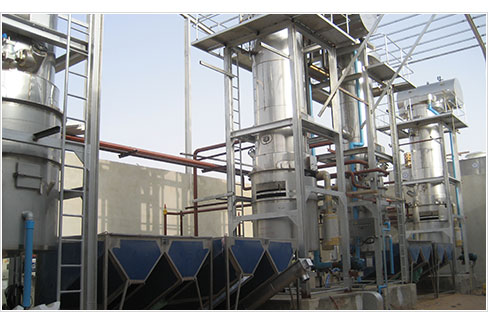

Model:FIT-500

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	380V/3P/50Hz
Refrigerant			R22 or R404A
Capacity		Kg/day	50000
Temperature	Ambient temperature	℃	35
Temperature	Waterinlet temperature	℃	20
Operating power	Total running power	Kw	177
	Installment power	Kw	220
	Operating power of cutter	Kw	5.5
	Operating power of cold water pump	Kw	5.5
	Fan motor of cooling tower	Kw	5.5
	Operating power of cold water pump	Kw	11.5
Compressor	Manufacturer		Bitzer
	Refrigeration capacity	Kw	371.5
	Operating power	Kw	149
	Compressor COP/EER	Kw/kw	2.5
	Horse power	Hp	50×5
	Cooling way		Water cooling
Dimension	Size of ice maker	(L×W×H)(mm)	Unit:4300×2200×2000
	Size of ice maker	(L×W×H)(mm)	Evaporator:1800×1800×6000
	Size of cooling tower	(O.D×H)(mm)	Φ3770×3690
	Size of liquid pipe of cooling tower		1-1/4"
	Size of cooling water pipe		6"
	Size of waterinlet pipe of ice maker		1-1/2"
	Size of ice outlet	mm	500×400
Weight of unit	Operating weight of tube ice maker	Kg	unit:4560
	Operating weight of tube ice maker	Kg	Evaporator:6500
	Operating weight of cooling tower	Kg	3770
Water supply pressure requirement		Bar	1.5
