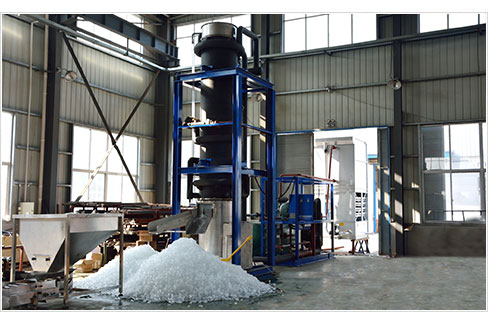

Model:FIT-300

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	380V/3P/50Hz
Refrigerant			R22 or R404A
Capacity		Kg/day	30000
Temperature	Ambient temperature	℃	35
Temperature	Waterinlet temperature	℃	20
Operating power	Total running power	Kw	105
	Installment power	Kw	130
	Operating power of cutter	Kw	2.2
	Operating power of cold water pump	Kw	3.7
	Fan motor of cooling tower	Kw	2.2
	Operating power of cold water pump	Kw	7.5
Compressor	Manufacturer		Bitzer
	Refrigeration capacity	Kw	222.9
	Operating power	Kw	89.4
	Compressor COP/EER	Kw/kw	2.5
	Horse power	Hp	50×3
	Cooling way		Water cooling
Dimension	Size of ice maker	(L×W×H)(mm)	Unit:2800×2200×2000
	Size of ice maker	(L×W×H)(mm)	Evaporator:1450×1450×5200
	Size of cooling tower	(O.D.×H)(mm)	Φ3050×2780
	Size of liquid pipe of cooling tower		1"
	Size of cooling water pipe		4"
	Size of waterinlet pipe of ice maker		11-1/4"
	Size of ice outlet	mm	450×350
Weight of unit	Operating weight of tube ice maker	Kg	Unit:3280
	Operating weight of tube ice maker	Kg	Evaporator:4860
	Operating weight of cooling tower	Kg	1630
Water supply pressure requirement		Bar	1.5
